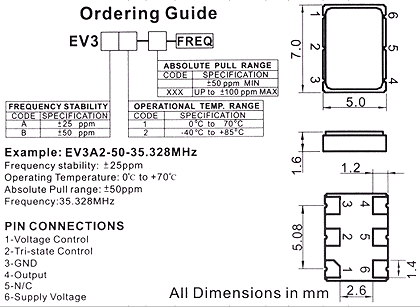

ETL > Quartz Crystal > SMD Voltage Controlled Crystal Oscillator ( EV3 / EV5 )   Standard Specifications EV3 Type Parameter Symb Condition Min Typ Max Unit Frequency Range F   1..8432   36 MHz Frequency Stability F/F Overall     ±50 ppm Operating Temperature Range 0 to 70oC (-40oC to +85oC available) Supply Voltage VDD   3.15 3.30 3.45 V Input Current IDD 15 pF   5   mA Duty Cycle   @50% VDD 45 50 55 % Rise/Fall Time Tr /Tf 10% to 90%   3 6 nS Logic "1" Level Voh         V Logic "0" Level Vol Loaded. Overall 0.9VDD     0.1VDD V Start-up Time Ts     2 10 mS Absolute Pull range     ±50     ppm Enable Input Vc   0   3.3 V Enable Input       ±10   % Enable Input Input HIGH(>2.2V) or floating: ACTIVE Disable Input Input LOW(<0.8V): INFINITE IMPEDANCE Enable/Disable Time         100 nS Load 15 pF/10-TTL gates Output HCMOS/TTL EV5 Type Parameter Symb Condition Min Typ Max Unit Frequency Range F   1..8432   36 MHz Frequency Stability F/F Overall     ±50 ppm Operating Temperature Range 0 to 70oC (-40oC to +85oC available) Supply Voltage VDD   4.75 5 5.25 V Input Current IDD 15 pF   5   mA Duty Cycle   @50% VDD 45 50 55 % Rise/Fall Time Tr /Tf 10% to 90%   3 6 nS Logic "1" Level Voh         V Logic "0" Level Vol Loaded. Overall 0.9VDD     0.1VDD V Start-up Time Ts     2 10 mS Absolute Pull range     ±50     ppm Enable Input Vc   0   5 V Enable Input       ±10   % Enable Input Input HIGH(>2.4V) or floating: ACTIVE Disable Input Input LOW(<0.8V): INFINITE IMPEDANCE Enable/Disable Time         100 nS Load 15 pF/10-TTL gates Output HCMOS/TTL Dimensions (mm) EV3 EV5
