ETA SERIES OF CERAMIC RESONATORS

  • Downsizing of this product reduces cubic volume in equipment compared to conventional products.
  • Due to the unique design of our product, oscillating frequency characteristics are stable.
  • Due to the use of static material in this product, changes of frequency in temperature range and aging are minimal.
  • This product with a built-in capacitor is sealed perfectly and has superior performance in various environments.

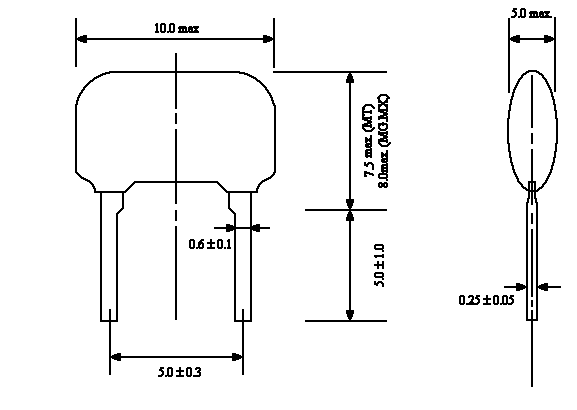

ETA



Application

This product is used as a source of clock signals for various types of microprocessors, which in turn are used in CD, CD-ROM, HDD, game equipment, etc.

Technical Characteristics


Part Number

Frequency

Range

(MHz)

Frequency

Tolerance

(at 25¢J)

Temperature

Stability

(at-20¢J~+80¢J)

Operating

Temperature

(¢J)

Aging

¡@

(for 10 yrs)

Marking

ETA xxx MG

2.00 ~ 5.00

±0.5%

±0.3%

-20 ~ +80

±0.3%

under our method

ETA xxx MT

5.01 ~ 13.00

±0.5%

±0.3%

-20 ~ +80

±0.3%

under our method

ETA xxx MX040

13.01 ~ 32.00

±0.5%

±0.3%

-20 ~ +80

±0.3%

under our method

Part Number

Frequency Range (MHz)

Circuit Constants

C1 (pF)

C2 (pF)

ETA xxx MX040

13.01 ~ 19.99

30

30

20.00 ~ 25.99

15

15

26.00 ~ 32.00

5

5
